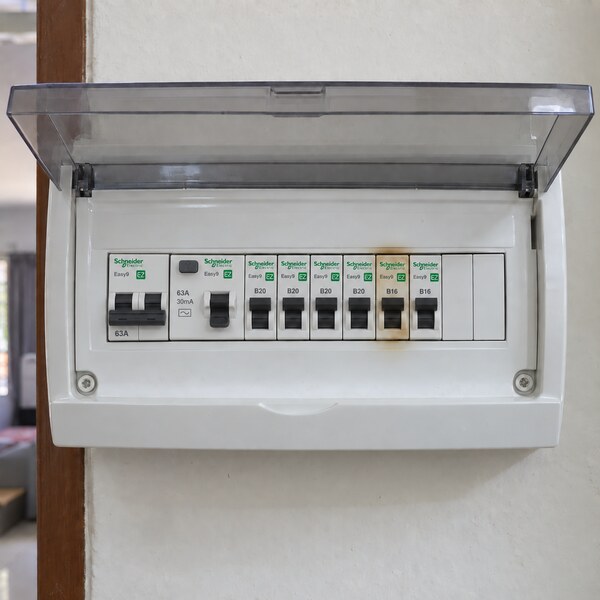

A DB box that feels unusually hot should not be ignored, especially when the heat is new, becoming more noticeable or accompanied by a burning smell and discolouration. The heat may involve an MCB, RCCB, main switch or an electrical connection inside the distribution board.
The cause cannot be confirmed from the temperature of the cover alone. The electrical components, cable connections and circuit load may need to be checked before the actual source of the heat can be identified.
📲 Is your DB box getting hot? WhatsApp us for electrical troubleshooting services.
Why Does a DB Box Become Hot?
The DB box distributes electricity to lighting, socket outlets, air conditioners and other circuits throughout the property. It also contains protective devices such as the main switch, MCBs and RCCBs.
Excessive heat may develop when a connection is no longer secure, the electrical load is high or a component is faulty. Possible causes that may need to be checked include:
- A loose cable connection or terminal.
- A high electrical load on a circuit.
- A faulty MCB, RCCB or main switch.
- A cable size or component rating that is unsuitable for the load.
- Arcing at a terminal or electrical connection.
- An old, damaged or overheated component.
Each cause may require a different solution. Replacing an MCB without checking the cable connections, circuit load and other components may not resolve the actual problem.
Is a Slightly Warm DB Box Normal?
Some electrical components may produce a small amount of heat while operating. However, the level of risk should not be judged by touching the DB box cover or by the temperature alone.
New, increasing or localised heat should be investigated. Attention is also required if the DB box was previously operating normally but becomes hot whenever a particular appliance is being used.
Warning Signs That Should Not Be Ignored
Arrange an electrical check without delay if the hot DB box is accompanied by any of these signs:
- A burning or melted-plastic smell.
- Black marks, yellowing or other discolouration.
- A cover that appears melted or distorted.
- Buzzing, hissing, crackling or popping sounds.
- Smoke coming from the DB box.
- An MCB or RCCB that trips repeatedly.
- Lights flickering when an appliance is used.
- Electricity being lost in part of the property.
These conditions may indicate a problem with an electrical connection, cable or protective device. Do not touch or open the DB box if you notice smoke, sparks or excessive heat.
If the heat occurs together with a humming, hissing or crackling sound, read our guide to a buzzing DB box for other warning signs that may require attention.
📲 Is the DB box hot or producing a burning smell? WhatsApp us for electrical services.
What Should You Do When a DB Box Is Hot?
Keep a safe distance and observe the situation without removing the internal cover. Do not attempt to tighten terminals, touch internal cables or replace a circuit breaker yourself.
- Reduce the use of high-powered appliances if it is safe to do so.
- Notice whether the heat develops when a particular appliance is switched on.
- Do not repeatedly reset a circuit breaker that continues to trip.
- Keep combustible materials away from the DB box.
- Contact an electrical contractor if the condition continues.
If there is smoke or fire, do not use water. Move to a safe location and contact the emergency services.
Why Does a Loose Connection Produce Heat?
Electrical cables must be secured correctly at their terminals. A loose connection can increase electrical resistance and produce heat at the affected point.
The problem may not be visible from outside the enclosure. Appropriate inspection and testing are required before deciding where the fault is located and what work is necessary.
Can a High Electrical Load Cause Heat?
A DB box that becomes hot when several high-powered appliances are used at the same time may have an issue involving circuit loading or the condition of a protective device.
However, higher electricity use does not automatically mean that the electricity supply must be upgraded. The circuit load, distribution of circuits, component ratings and cable connections should be checked first.
If the cause has not been identified, you can arrange our electrical troubleshooting service for further investigation.
Should the MCB or Entire DB Box Be Replaced?
A hot DB box does not always require complete replacement. If the problem is limited to one connection or component and the remaining installation is still suitable, repairing or replacing the affected part may be sufficient.
A replacement or upgrade may be considered when the enclosure is damaged, shows serious signs of overheating, has insufficient circuit space or contains components that are no longer suitable for the installation.
If replacement is required, you can arrange our DB box upgrade service based on the condition of the existing installation.
The decision should be made after the cause has been identified rather than from the temperature of the cover alone.

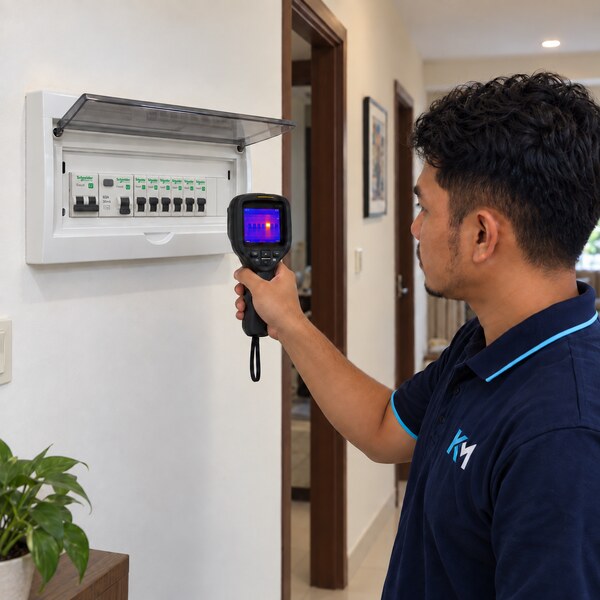

What May Be Checked Inside the DB Box?
The scope of work depends on the installation and the symptoms reported. The contractor may need to check:
- The condition of the main switch, MCBs and RCCBs.
- Cable terminals and electrical connections.
- Signs of heat, arcing or discolouration.
- Component ratings for the circuits they protect.
- The electrical load on the affected circuit.
- Neutral and earthing connections.
Once the cause has been confirmed, suitable work may include securing a connection, replacing a damaged component or upgrading the distribution board.
Frequently Asked Questions
Can I Continue Using a Hot DB Box?
New or unusual heat should be investigated. Stop using the affected electrical system and seek immediate assistance if you notice a burning smell, smoke, sparks or melted plastic.
Does a Hot DB Box Mean the MCB Is Faulty?
Not necessarily. The heat may come from an MCB, another component, a cable connection or the electrical load. The cause should be confirmed before replacing anything.
Can I Open the DB Box and Tighten the Connections Myself?
No. Parts inside a DB box may remain energised and can expose you to electric shock, arcing and serious injury. Internal components should only be handled by a qualified person.
Must the DB Box Be Replaced If It Keeps Getting Hot?
Not always. Replacement depends on the cause, condition of the enclosure, affected components and suitability of the existing installation.
Need Services for a Hot DB Box?
If your DB box becomes hot, produces a burning smell or shows signs of discolouration, do not wait for the problem to become more serious. An electrical check can identify the affected part and determine what work is actually required.
📲 Is your DB box still hot? WhatsApp us for electrical services.
