A main switch is an electrical switching device used to turn on, turn off and isolate the electrical supply for an entire installation.
It is normally located near the beginning of the electrical distribution system before the supply continues to protective devices and final circuits.
The main switch performs a different function from an MCB, RCCB or RCBO. Its primary role is to act as the main isolation point for the electrical installation.

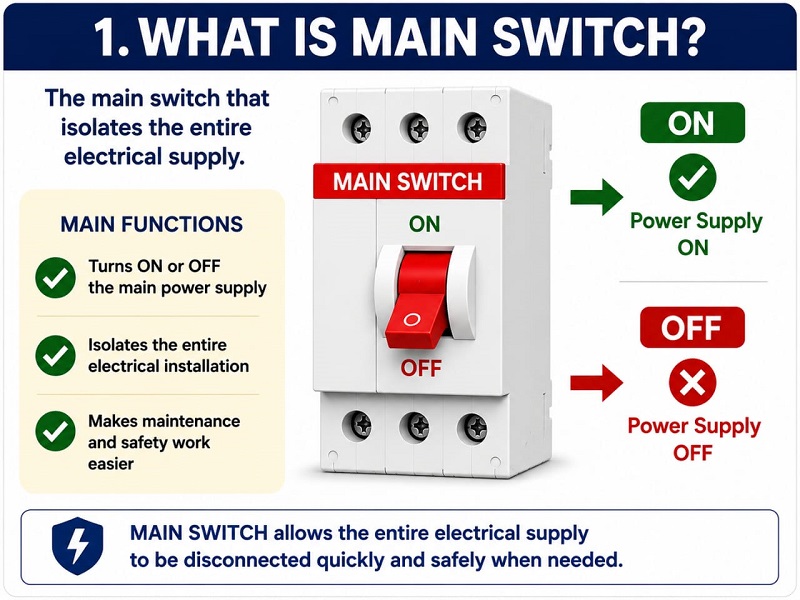

What Is a Main Switch?
A main switch is a switch that allows the electrical supply to the entire installation to be turned on or disconnected.
When the main switch is in the OFF position, the downstream part of the installation can be isolated from the incoming supply according to the system configuration.
Main Functions of a Main Switch
The main switch performs several basic functions within an electrical system.
- Turns the main electrical supply on or off
- Isolates the entire electrical installation
- Helps make inspection and maintenance safer when isolation is required
- Allows the electrical supply to be disconnected quickly when necessary
The main switch forms part of the switching and isolation arrangement of the installation, but it does not necessarily provide the same protection functions as circuit breakers or residual current devices.

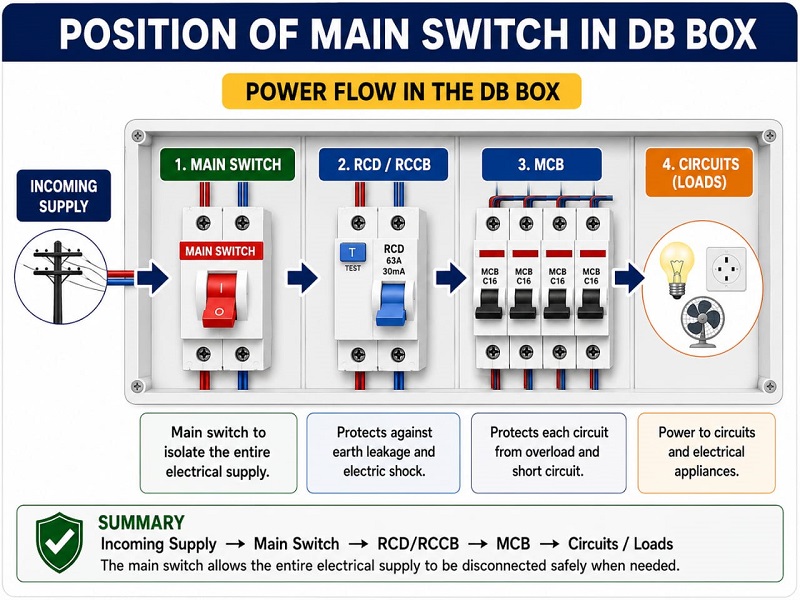

Position of the Main Switch in a DB Box
In a distribution board or DB box, the main switch is usually located near the beginning of the incoming power flow before the protective devices and final circuits.
A simplified power flow can be represented as:
Incoming Supply → Main Switch → RCD/RCCB → MCB → Circuits and Loads
The actual arrangement may vary depending on the installation design, type of supply and protection system used.
Main Switch vs MCB
A main switch and an MCB perform different functions.
The main switch is mainly used to switch and isolate the main electrical supply to the installation.
An MCB is used to protect an individual circuit against overcurrent conditions such as overload and short circuit.
For this reason, a main switch should not be considered a replacement for an MCB.
Main Switch vs RCCB
A main switch is also different from an RCCB.
An RCCB detects residual or leakage current and can disconnect the supply when the required condition occurs.
The main switch is used for manual isolation and does not provide residual current protection in the same way as an RCCB.
For a clearer explanation of these protection devices, read our guide on MCB vs RCCB vs RCBO.
Main Switch vs MCCB
An MCCB, or Moulded Case Circuit Breaker, is a switching and protection device commonly used where higher current capacity or specific protection characteristics are required.
Although an MCCB can be used as a switching device in some designs, the term main switch refers to the main isolation function within the system, while an MCCB is a type of circuit breaker with specific protection capabilities.
The type of device used as the main switch depends on the electrical installation design and its requirements.
Does a Main Switch Provide Overload Protection?
Not necessarily.
A main switch operating as an isolator or switch disconnector is primarily intended for switching and isolation, not necessarily for overload or short circuit protection.
Overcurrent protection is normally provided by devices such as MCBs, MCCBs or other suitable circuit breakers.
Is a Main Switch the Same as a Circuit Breaker?
Not necessarily.
Some electrical installations use a device that combines switching and protection functions, while other systems use separate main switches and circuit breakers.
The function of a device should therefore be identified based on its type, rating and system design rather than its position in the DB box alone.
Main Switch for Single-Phase and Three-Phase Supply
The type of main switch also depends on the electrical supply system being used.
In single-phase and three-phase installations, the number of poles, current rating and switch configuration need to match the electrical supply and installation design.
A main switch should not be selected only because it has a higher ampere rating or larger physical size. Its selection needs to consider the overall electrical system design.
When Should a Main Switch Be Checked?
A main switch should be inspected if conditions such as the following are present:
- The switch is difficult to turn on or off
- There are signs of overheating or burn marks
- Connections appear loose or damaged
- The main switch produces unusual noise or behaviour
- The DB box is being inspected or upgraded
An inspection can help determine whether the issue is related to the main switch, cable connections, electrical load or another component in the DB box.
Do Not Increase the Main Switch Rating Without Assessment
The main switch rating needs to be suitable for the supply system, cables and overall electrical installation design.
Replacing the main switch with a higher rating without assessing the rest of the system does not necessarily increase the safety or capacity of the installation.
If the DB box requires replacement or improvement, see our DB box upgrade service.
FAQ
What is the main function of a main switch?
A main switch is used to turn on, turn off and isolate the electrical supply to the entire installation.
Is a main switch the same as an MCB?
No. A main switch is mainly used for switching and isolation, while an MCB protects a circuit against overload and short circuit.
Does a main switch protect against leakage current?
Not necessarily. Residual or leakage current protection is normally provided by suitable devices such as an RCCB or RCBO.
Can I replace a main switch with a higher ampere rating?
The main switch rating should not be increased without first assessing the cable capacity, electricity supply and overall installation design.
